The hydraulic compensation table pushes the clamping pin to move through the expansion of the hydraulic oil to the oil pipe, thus clamping and loosening the bending mold, which greatly improves the time of mold change and reduces the work intensity. The disturbance compensation of the bending machine is compensated by the wave-shaped inclined block, which ensures the consistency of the angle of the bending workpiece.

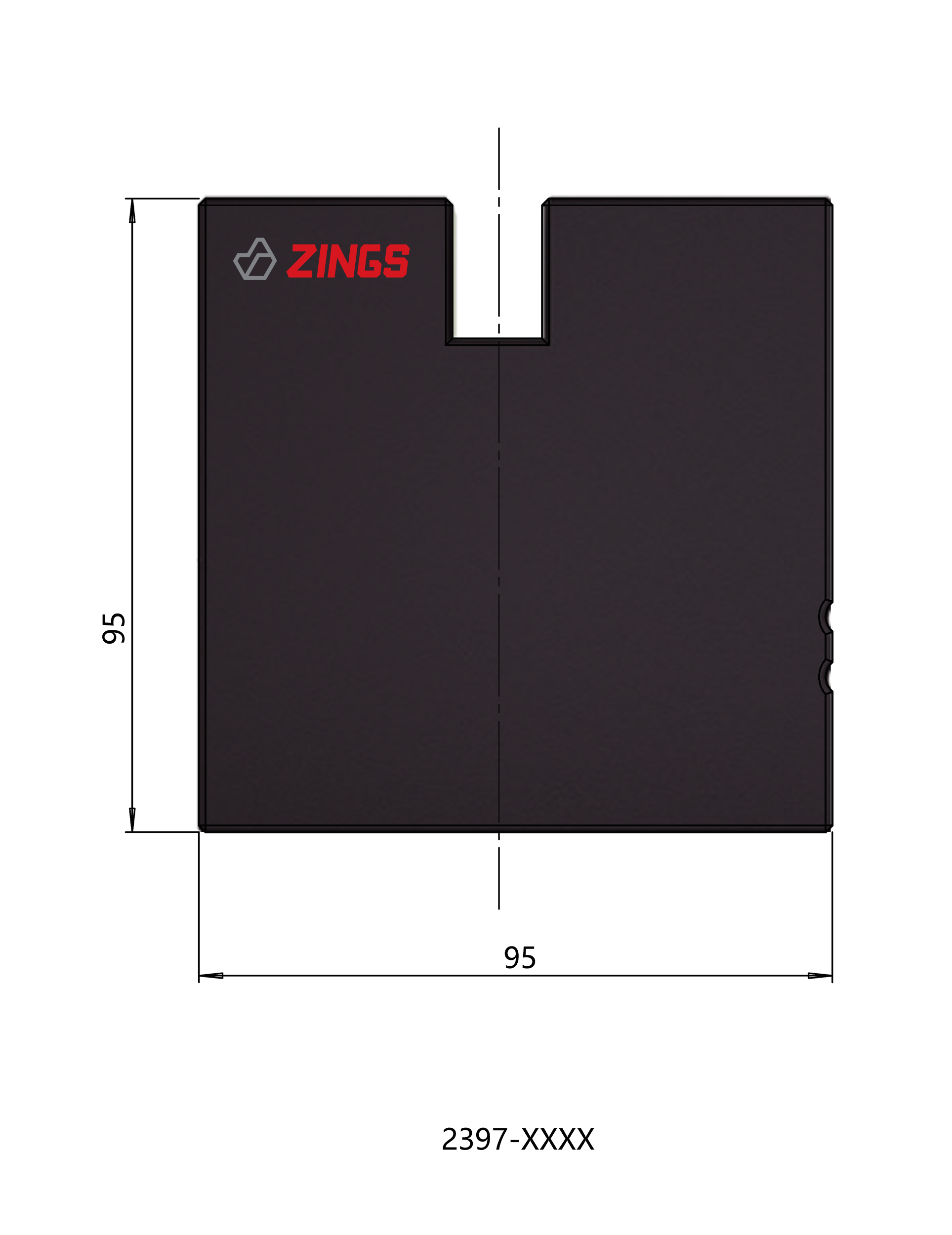

Hydraulic Crowning Table
| Parameter | Value |
| Clamping mode | Hydraulic |
| Mounting style | UPB |
| Front cover | Scale |
| Adjustment mode |
Tx and Ty two-way adjustment
|
| Hydraulic connector | M14×1.5×74° |
| Working pressure | 35-50kg |
| Maximum working oil temperature | 70° |
| Minimum mold width | 15mm |
| Maximum shoulder load | 200T/M |
| Tensile strength | >1000Mpa |
