As a power source required for hydraulic clamping, the hydraulic station requires a stable output to maintain the pressure between 3-5 Mpa at all times Ensure proper clamping operation. This hydraulic station is equipped with wireless remote control, which is convenient to use. The base of the hydraulic station is equipped with shock-absorbing rubber pads for easy movement Moving and handling.

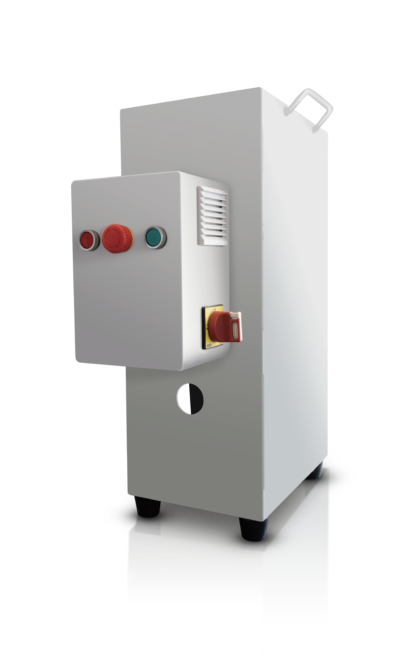

Hydraulic Power Unit
| Parameter | Value |
| Power supply |
Three-phase, 380V, 50/60HZ
|
| Motor power | 0.75KW |
| Fuel tank capacity | 4L |
| System pressure |
3-8Mpa (adjustable)
|
| Set pressure value |
3-5Mpa (low pressure automatically starts)
|
| Random accessories |
M14×1.5×74° pipe fitting hydraulic pipe (2M)
|
| Power Supply | P/N |
| 230V, 50/60HZ |
2396-S-230V/50/60
|
| 380V, 50/60HZ |
2396-S-380V/50/60
|
| 460V, 50/60HZ |
2396-S-480V/50/60
|
| 575V, 50/60HZ |
2396-S-575V/50/60
|
