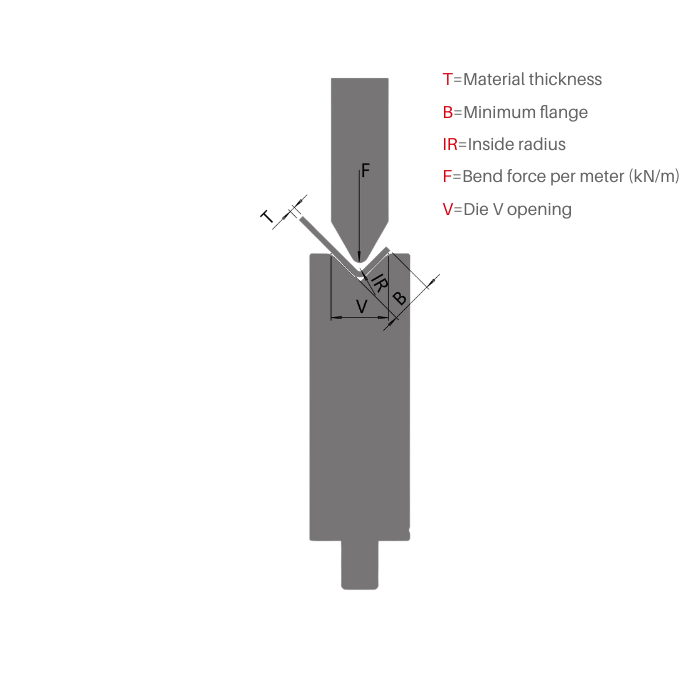

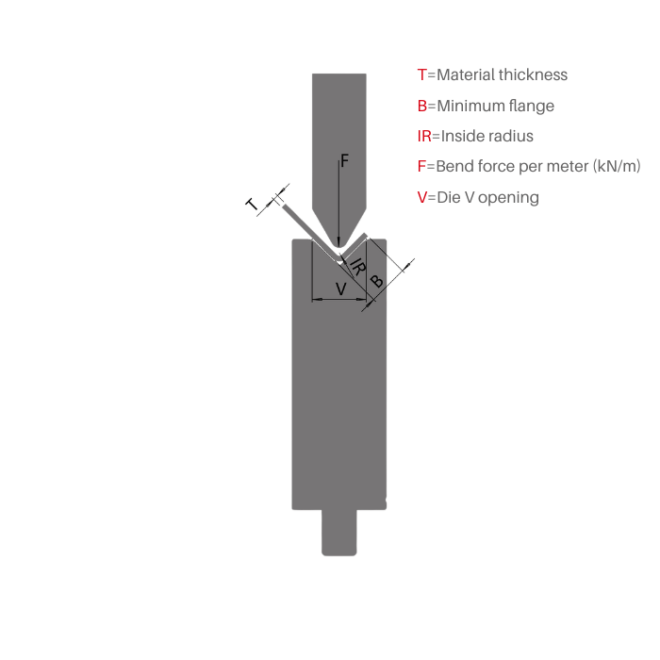

Air Bending Force Table
|
Air Bending V Opening Calculation Rule
|
|
| Aluminum | =0.5*F |
| Stainless Steel | =1.5*F |
|
Air Bending V Opening Calculation Rule
|
||||
|
Recommended Die V opening
|
||||
| Material Thickness | 0.75-2.5mm | 3-8mm | 9-10mm | >12mm |
| Die V Opening | 6*T | 8*T | 10*T | 12-15*T |
