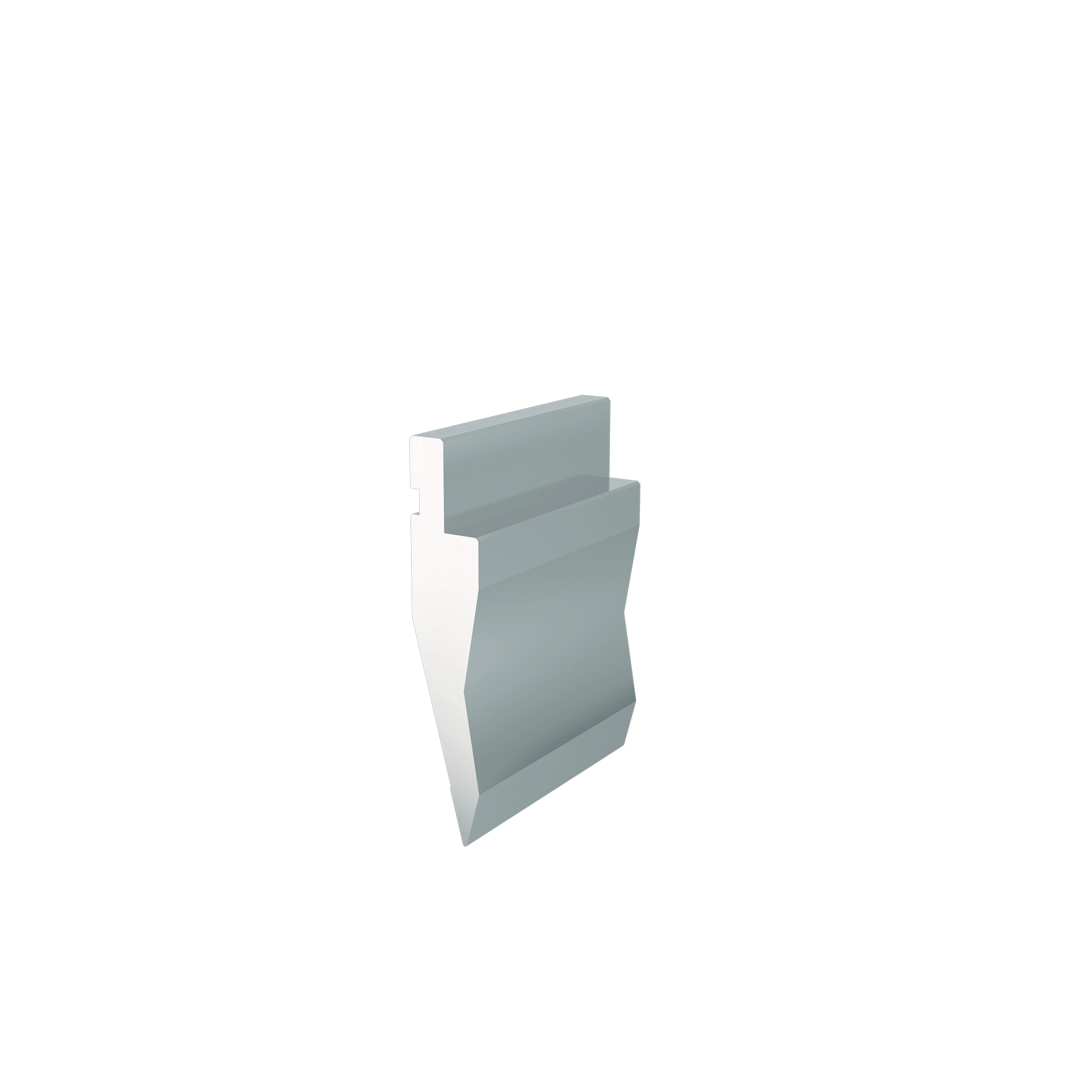

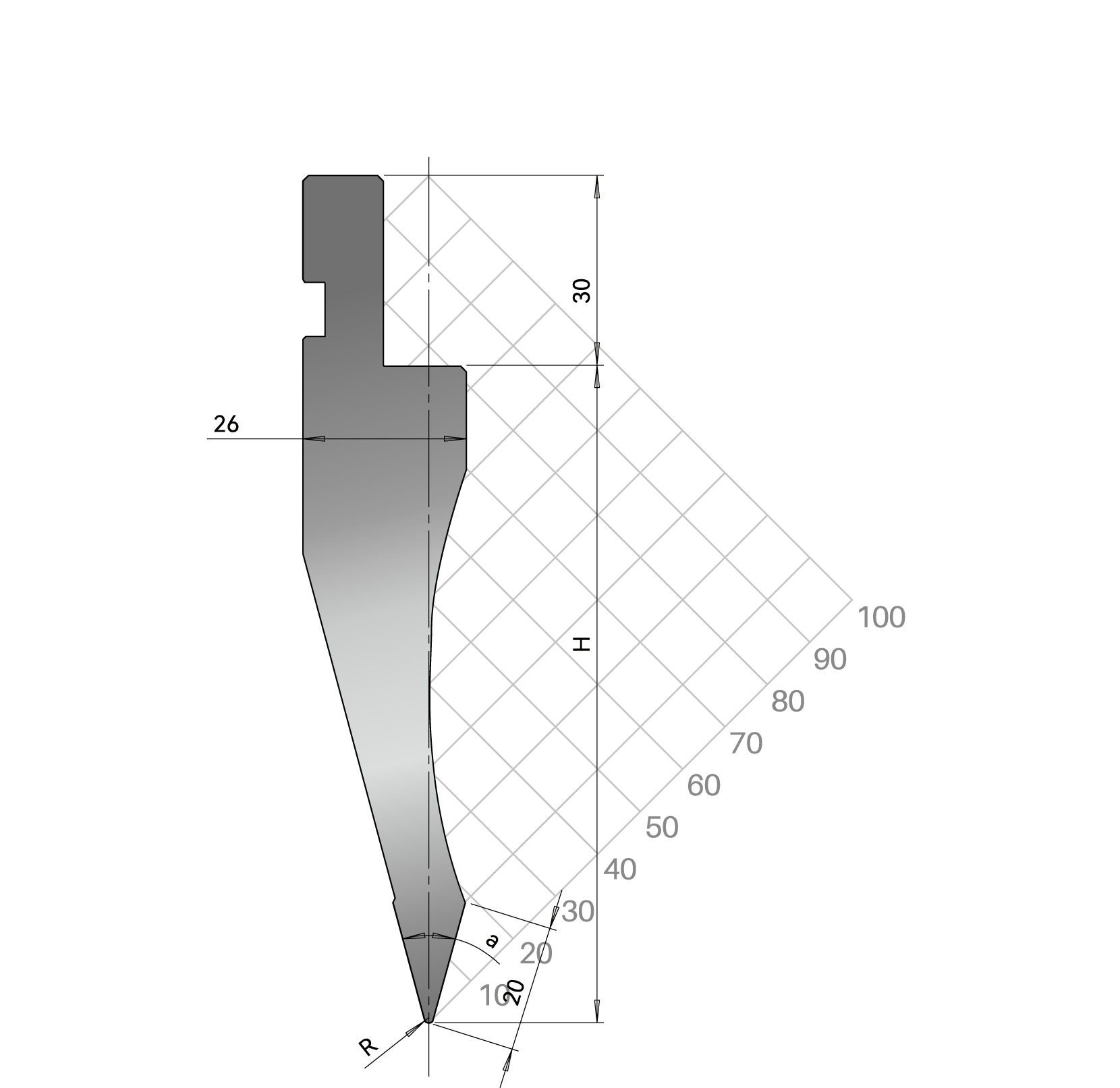

Acute Punches 30° Tall
| ZINGS CAT.NO | R | a | H | Max Loading (t/m) | Weight (kg/m) |
| ZEP.A3008T | 0.8 | 30° | 104 | 100 | 16 |
| ZEP.A3015T | 1.5 | 30° | 102 | 100 | 16 |
| ZEP.A3023T | 2.3 | 30° | 99.7 | 100 | 16 |
| ZEP.A3030T | 3 | 30° | 97.7 | 100 | 16 |
| ZEP.A3048T | 4.8 | 30° | 92.7 | 100 | 16 |
| ZEP.A3064T | 6.35 | 30° | 88.1 | 100 | 16 |
