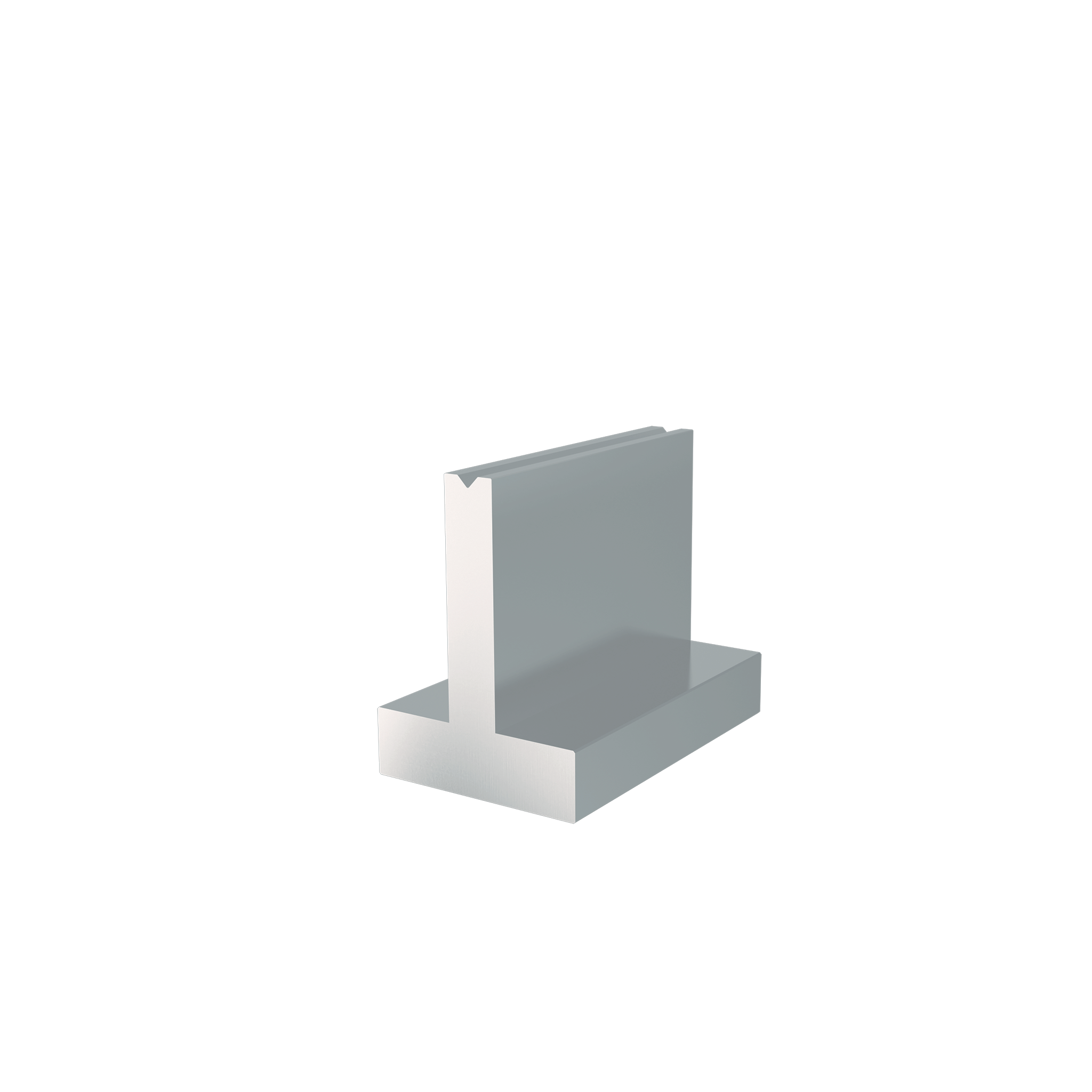

1VH80.88 Die
| ZINGS CAT.NO | V | a | R | W | Max Loading (t/m) | Weight (kg/m) |
| ZED.1VH80.88V6 | 6 | 88° | 0.4 | 14 | 100 | 15 |
| ZED.1VH80.88V8 | 8 | 88° | 0.5 | 14 | 100 | 15 |
| ZED.1VH80.88V10 | 10 | 88° | 1 | 14 | 100 | 17 |
| ZED.1VH80.88V12 | 12 | 88° | 2.75 | 18 | 100 | 17 |
| ZED.1VH80.88V16 | 16 | 88° | 2.75 | 18 | 100 | 20 |
| ZED.1VH80.88V20 | 20 | 88° | 3 | 30 | 100 | 22 |
| ZED.1VH80.88V25 | 25 | 88° | 3 | 35 | 100 | 24 |
