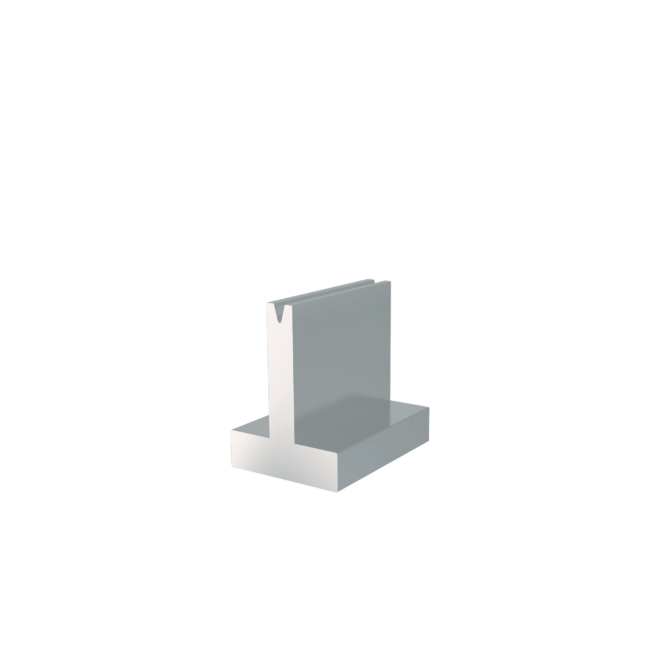

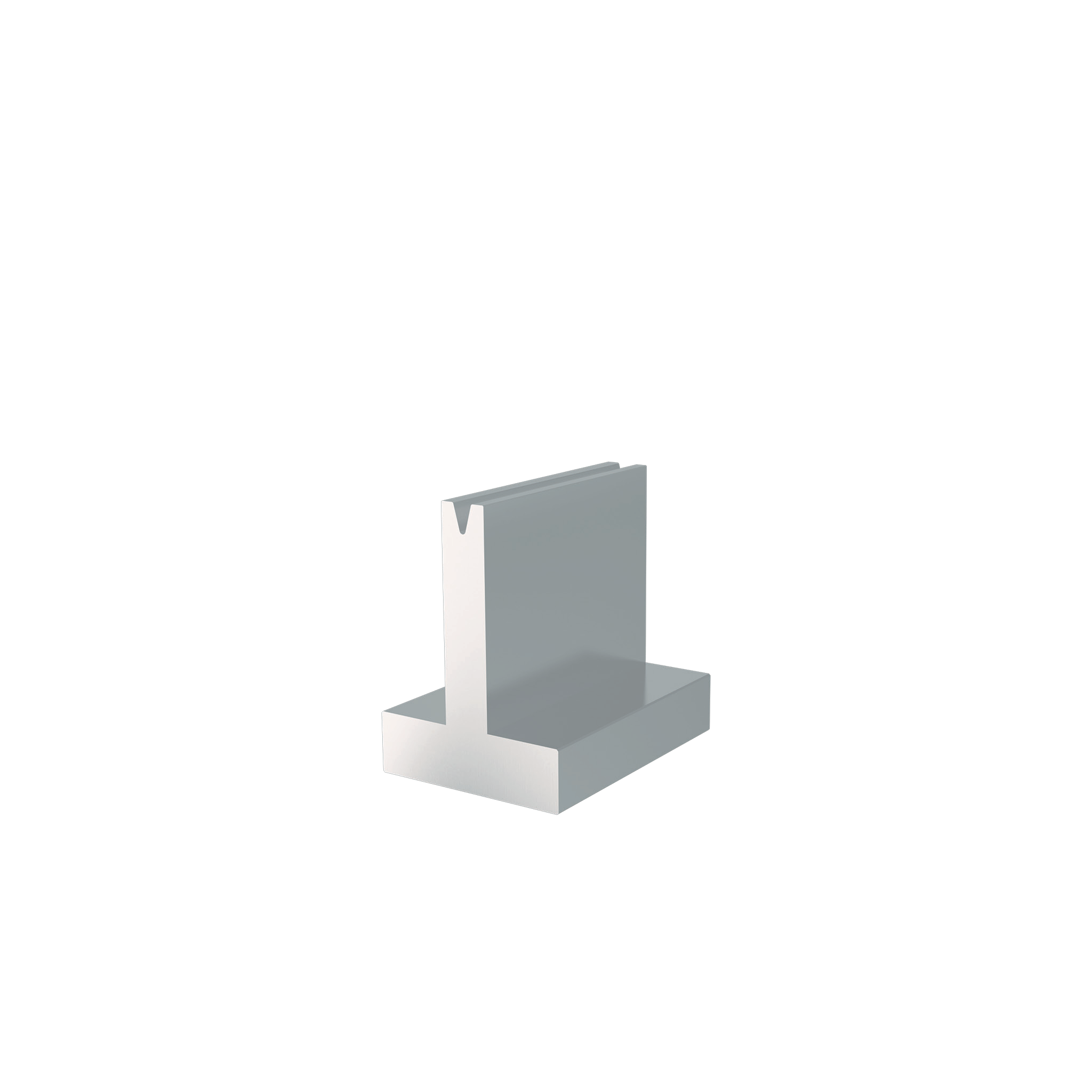

1VH80.30 Die
| ZINGS CAT.NO | V | a | R | W | Max Loading (t/m) | Weight (kg/m) |
| ZED.1VH80.30V6 | 6 | 30° | 0.6 | 14 | 35 | 15 |
| ZED.1VH80.30V8 | 8 | 30° | 0.8 | 18 | 35 | 17 |
| ZED.1VH80.30V10 | 10 | 30° | 1 | 24 | 40 | 19 |
| ZED.1VH80.30V12 | 12 | 30° | 1.5 | 24 | 45 | 19 |
| ZED.1VH80.30V16 | 16 | 30° | 2 | 30 | 50 | 21 |
| ZED.1VH80.30V20 | 20 | 30° | 2.5 | 35 | 50 | 23 |
| ZED.1VH80.30V25 | 25 | 30° | 3 | 40 | 50 | 24 |
